RAD Deal — DOT-Certified Mounted Ratchet Strap Kit
RAD Deal — DOT-Certified Mounted Ratchet Strap Kit
Couldn't load pickup availability
The only DOT-certified mounted ratchet strap kit built for American trucks. CNC-machined steel. Hand-assembled in the USA. US Patent No. 12594871. One install. Every haul, for the life of the truck.
What's In the Kit
Product Specifications
| DOT Certification | FMCSA-compliant cargo securement — 49 CFR Part 393 |
| US Patent | No. 12594871 — Granted. The original mounted strap system. |
| Break Strength | 1,200 lb per strap (assembly break strength) |
| Workload Limit | 400 lb per strap |
| Strap Dimensions | 1" wide × 9' length |
| Retraction | Auto-retracting housing — self-stores when not in use |
| Mounting Plate | CNC-machined solid steel — not stamped, not cast |
| Hardware | 10mm hex head bolts · Phosphate coated for corrosion resistance |
| Stainless Option | Available if mounting holes are pre-threaded |
| Assembly | Hand-assembled in the USA · Inspected before shipment |
| Colorways | Gold · Black Out |
| Country of Origin | United States of America |
DOT Certification — What It Means for You
RAD Truck Straps carry DOT certification under FMCSA cargo securement standards (49 CFR Part 393). This is the federal standard governing cargo tie-down equipment for commercial and regulated hauling.
For commercial and contractor use: DOT-certified straps satisfy FMCSA procurement requirements. Non-certified equipment used in commercial applications can expose operators to citation and liability. RAD satisfies the standard. Most competitors do not claim it.
For personal and recreational use: DOT certification means your straps have been tested and rated against a federal benchmark — not just a manufacturer's claim. It's the difference between "rated" and "rated by the government."
No other mounted ratchet strap brand in this category is currently claiming DOT certification. RAD is the standard.
Compatible Trucks
F-250 & Super Duty (2017–Current) · F-350 · F-450 · Tremor
Direct BoxLink replacement. 15-minute install. 10mm socket.
Universal Plate system. Drill-to-position install.
Universal Plate system. Drill-to-position install.
Universal Plate system. Drill-to-position install.
Universal Plate system. Drill-to-position install.
If it has a truck bed, RAD can be installed.
Installation Overview

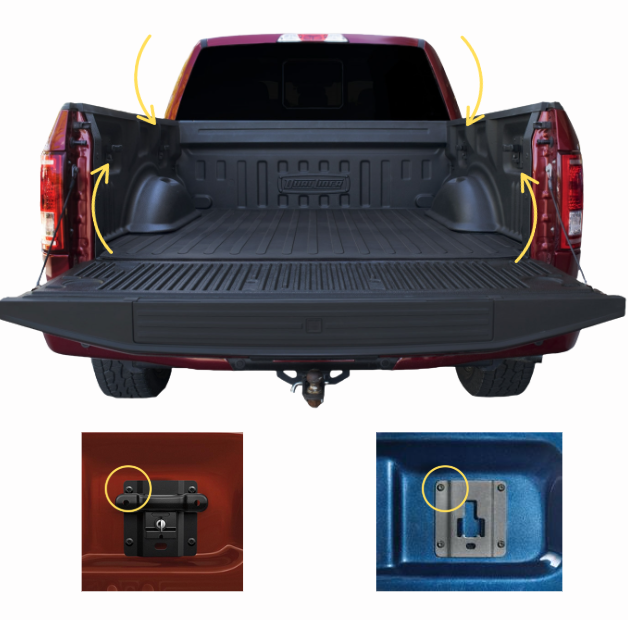

Ford F-150 / F-250 (BoxLink trucks) — approximately 15 minutes:
- Remove the existing factory BoxLink anchor caps from the bed rails.
- Insert the RAD CNC-machined mounting plate into the BoxLink slot.
- Fasten with the included 10mm hex head bolts and washers. No drilling required.
- Attach the RAD Strap housing to the mounted plate. Done.
All other trucks (Universal Plate) — approximately 20–30 minutes:
- Choose your installation position along the truck bed rail or floor.
- Mark and drill pilot holes at your chosen position.
- Mount the Universal Plate with the included hardware.
- Attach the RAD Strap housing. Done.
US Patent No. 12594871 is granted. DOT certification is current. The product has been the same since the beginning: built right, built once, built to last the life of the truck.
✝ Isaiah 41:10 · Stay RAD
What Buyers Haul with RAD Straps
RAD Truck Straps are used daily across the following applications — each of which benefits from a permanently mounted, DOT-certified cargo securement system:
- Motorcycles and dirt bikes — Street bikes, cruisers, and off-road bikes. Mounted straps eliminate the pre-ride scramble for loose tie-downs.
- ATVs and UTVs — Full-size side-by-sides and four-wheelers. The 400 lb workload limit per strap handles it.
- Contractor and job site equipment — Toolboxes, generators, lumber, compressors. For contractors hauling daily, DOT compliance is a professional requirement.
- Hunting and ranch gear — ATVs, livestock equipment, camping gear across rough terrain. Reliable hold every season.
- Camping and overlanding — Roof boxes, coolers, recovery gear. RAD stays mounted when you need it and retracts clean when you don't.
- Kayaks, canoes, and paddleboards — Watercraft on long-bed trucks. Clean, permanent anchor points beat cam straps every time.
Frequently Asked Questions
Are RAD Truck Straps DOT certified?
Yes. RAD Truck Straps carry DOT certification under FMCSA cargo securement standards (49 CFR Part 393). They are currently the only mounted ratchet strap brand in the category making a verified DOT certification claim.
What is the break strength of RAD Truck Straps?
Each RAD Strap has a 1,200 lb assembly break strength and a 400 lb workload limit. The RAD Deal includes two straps, providing 800 lb aggregate workload capacity across both mounting points.
Do RAD Truck Straps fit the Ford F-150?
Yes. RAD Truck Straps include a direct BoxLink replacement mounting plate for Ford F-150 models from 2015 to current, including the Lightning, Raptor, and Tremor. No drilling required. Installation takes approximately 15 minutes with a 10mm socket.
Do RAD Truck Straps fit trucks other than Ford?
Yes. The included Universal Plate system fits Chevrolet Silverado, RAM 1500/2500/3500, GMC Sierra, Toyota Tacoma, Toyota Tundra, Nissan Frontier, Jeep Gladiator, Honda Ridgeline, and virtually any other truck or trailer. Universal Plate installation requires drilling at your chosen position.
Are RAD Truck Straps made in the USA?
Yes. RAD Truck Straps are hand-assembled in the United States. The CNC-machined steel mounting plates are precision manufactured and inspected before assembly by the founding team.

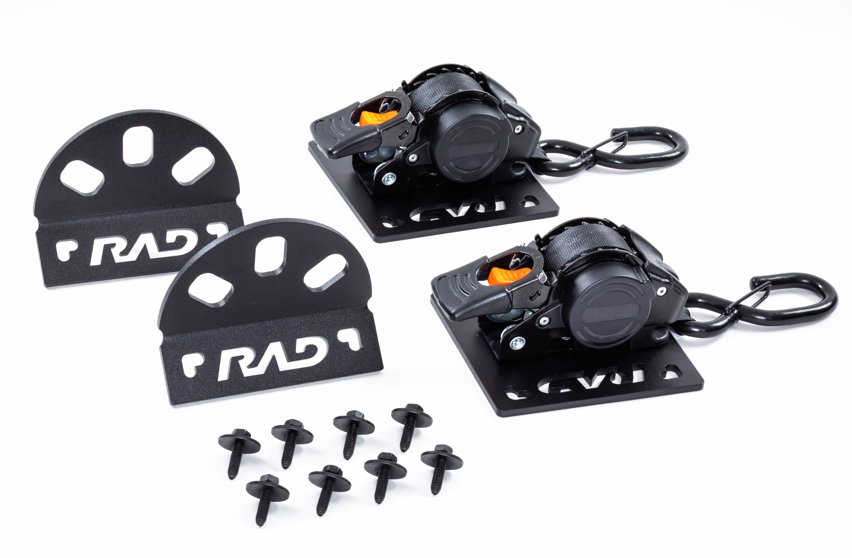

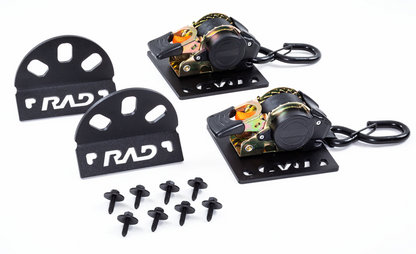

What does the RAD Deal include?
The RAD Deal includes two DOT-certified auto-retracting RAD Straps (Gold or Black Out colorway), two CNC-machined solid steel mounting plates, 10mm hex head hardware with washers, and a mini RAD sticker. Everything required for a complete two-strap installation.
How do RAD Truck Straps compare to other mounted strap brands?
RAD Truck Straps are the only mounted ratchet strap system in the category carrying DOT certification. They are US patented (No. 12594871), hand-assembled in the USA, and built on CNC-machined solid steel mounting plates. No other brand in this category is currently claiming DOT certification.
Is there a military or first responder discount?
Yes. Active and veteran US Military, National Guard, Law Enforcement, and First Responders qualify for a discount. Use ID.me to receive your discount code before ordering.
